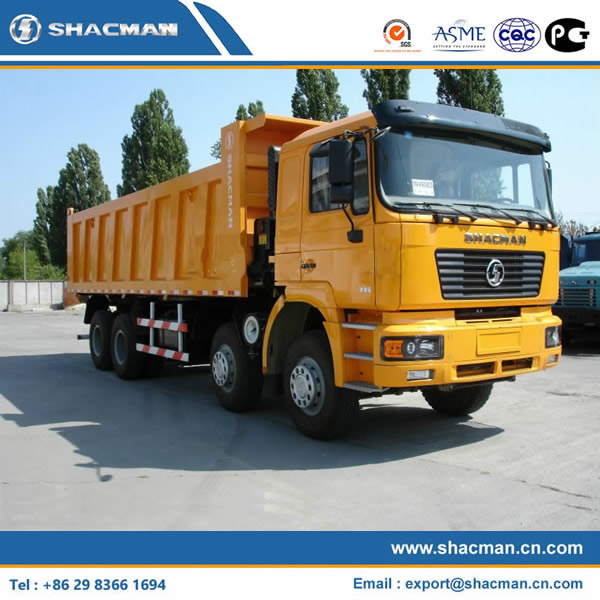

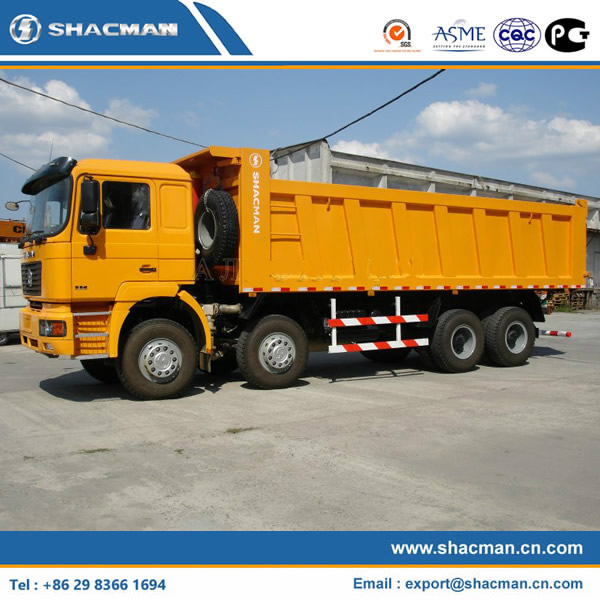

Model | SX3314DR366 |
Make | SHACMAN |
Drive type | 8×4 |
Application | Dump truck |
Weight | |
Complete kerb mass (kg) | 15300 |
GVW (kg) | 45000 |
Load Mass(kg) | 29700 |
Dimensions | |
Max.length(mm) | 10100 |
Max.width(mm) | 2490 |
Max.heigh(mm) | 3450 |
Front / Rear overhang (mm) | 1525/1825 |
Wheel base(mm) | 1800+3600+1350 |
Track width(mm) | 2036/1850 |
Performance | |
Max.speed (km/h) | 80 |
Min.turning circle(m) | 24 |
Min.ground clearance(mm) | 314 |
Approach / Departure angle (°) | 22/33 |
Max.gradeability(%) | 32 |
Engine | |
Make | Weichai Power |
Model | WD12.336 |
Power(kw/HP) | 247/336 |
Max.Torque (N.m )/rpm | 1350/2200 |
Displacement (L) | 11.596 |
Emission Standards | Euro 2 |
Transmission | |
Make | FAST |
Model | 12JS160T |
Control type | manual |
Gear Shift | 12-forward and 2 reverse speeds |
Clutch | |
Type | Spring plate, diaphragm spring |
Diameter (mm) | φ430 |
Action | mechanical pull type, self adjusting Air assisted clutch |
Brakes | |
Type | Drum |
Service brake | With dual-circuit compressed air brake |
Park brake | Power spring brake acting on rear wheel |
Auxiliary brake | WEVB |
Steering | |
Make | ZF Technology |
Type | Integral inner circulation power steering |
Chassis | |
Type | Ladder structure with parallel straight |
Dimensions (mm) | 300×80×(8+7) |
Suspension | |
Front Suspension | semi-elliptic springs with shock absorbers |
Rear Suspension | inverted leaf spring stabilizator suspension |
Axles | |
Make | SHAAN’XI HANDE |
Front axle | 6500kg+6500kg |
Rear axle | 16000kg+16000kg |
Tires | |
Type (Standard) | 11.00R20, 13 pieces |
Fuel tank | |
Tank capacity (L) | 380 |
Material | Metal |
Electrics | |
Type | 24V |
Starter | 6.2kw(24V) |
Generator | 2.2kw(28V 80A) |
Battery | 2×135Ah |
Cab | |
Type | MAN D’LONG F2000, Mid-lengthened flat roof, one sleeping bed, with manual control AC |
Cargo Box | |
Platform dimensions(mm) | 7200×2300×1500, front lifting, HYVA φ169, made in China |
