Specification | Chassis brand | ||

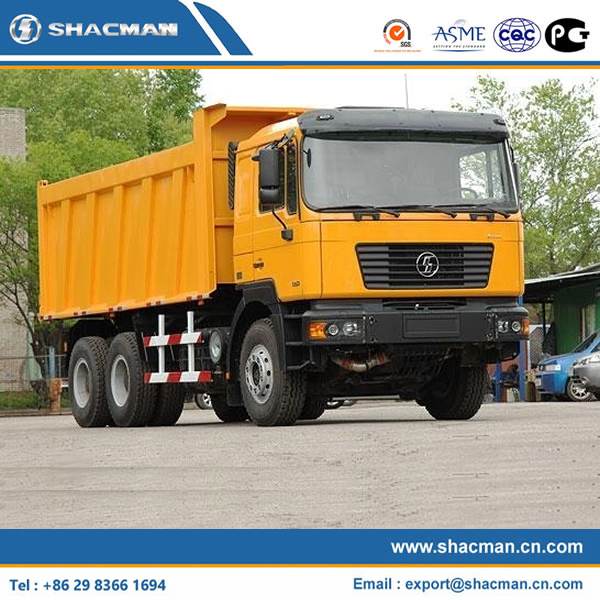

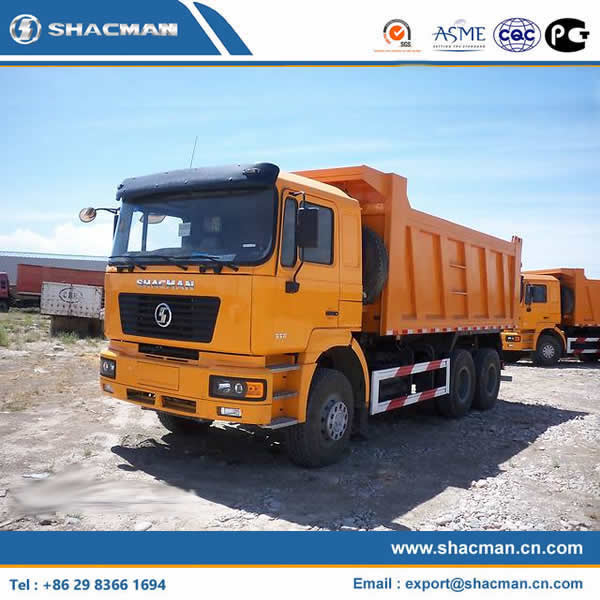

Chassis | Brand Model | SHACMAN | |
Model (Model No.) | SX3254DM384 | ||
Drive Mode | 6×4 | ||
Tire | 11.00R20 | ||
Brake | Air brake | ||
Engine | Model | WD615.50 | |
Horsepower (Hp) | 280 | ||
Displacement(ml)/Power(kw) | 9726/206 | ||
Emission | Euro II | ||
Main Parameter | Overall dimension (MM) | L*W*H | 8275*2490*3300 |
wheelbase | 3800+1350 | ||
Axles No. | 3 | ||
Cargo dimenssion (mm) | L*W*H | 5400*2300*1500 | |
Thickness of the cargo | side 6mm, bottom 8mm | ||
Capacity | 20-30T | ||
Weight (KG) | Gross weight | 25000 | |
Payload weight | 12370 | ||
Kerb weight | 12500 | ||
Leaf spring No. | 9/12 | ||
Approaching/Departure Angle(°) | 28/66 | ||
Front/Rear Track(mm) | 1939/1800 | ||
Max speed(km/h) | 77 | ||
Gear Box | 9 speed gearbox | ||
Front/Rear Axle Load | MAN Tech 7.5T/ Steyr 13T | ||
Cab | Color: Yellow | Middle length flat-roof with A/C |
